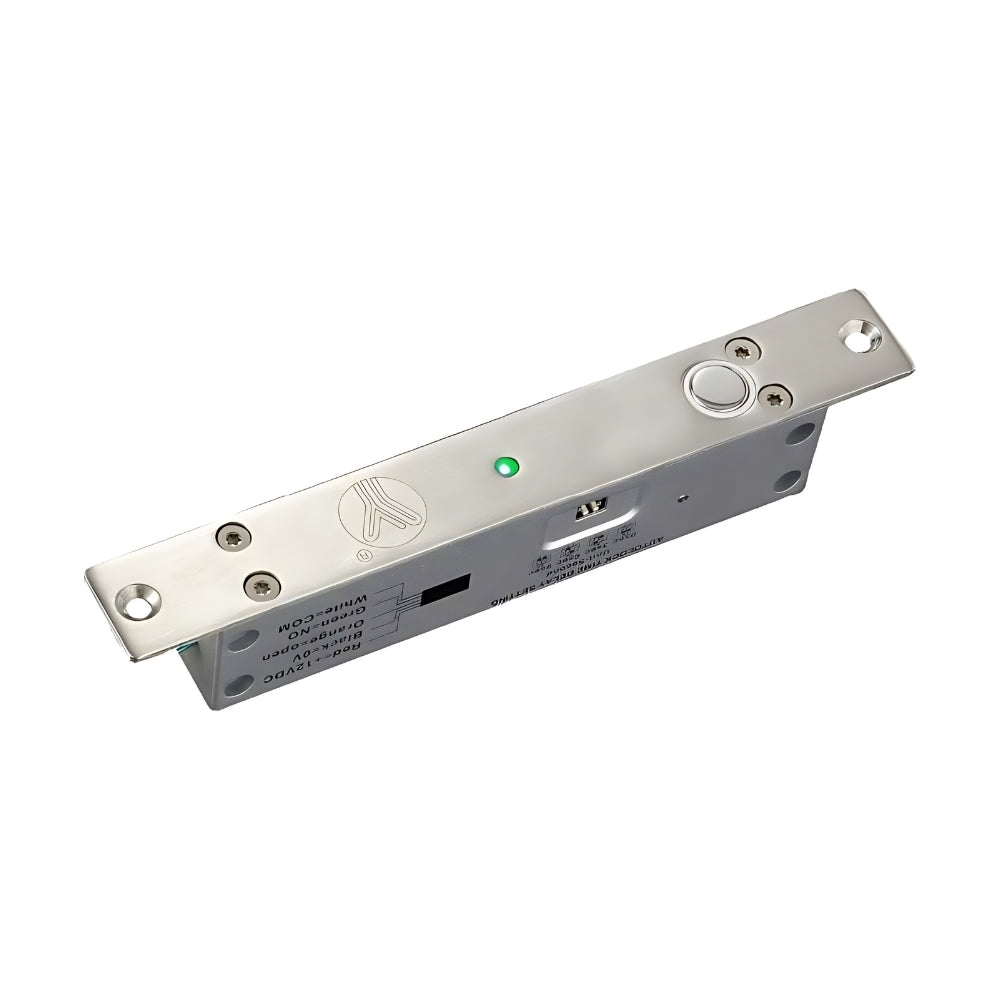

Electric Drop Bolt - YLI YB-500A(LED)


Price:
Sale price€35,80

Description

Electric drop bolt for installation with narrow profile. Designed for all types of doors (wooden, metal, PVC or glass*). Features:

  • Hull - stainless steel;
  • Retaining force - 1000 kg.
  • Fail Safe - locked under tension;
  • LED indication - Yes;
  • Door status output - Yes (NO/Com);
  • Regulable lock time - Yes (0, 3, 6 or 9 sec.);
  • Power: 12 VDC
  • Consumption: start 960mA, (standby 180mA)
  • Distance between the two plates - 8mm. (maximum);
  • Operating temperature: -25ºC ~ 55ºC
  • Dimensions:
    • face plate - 192x25x37mm.;
    • locking plate - 90x25x2mm.;
    • cut - f16x13mm.;
* for glass doors an additional BBK-600 or BBK-601 plate is required
