Beschreibung

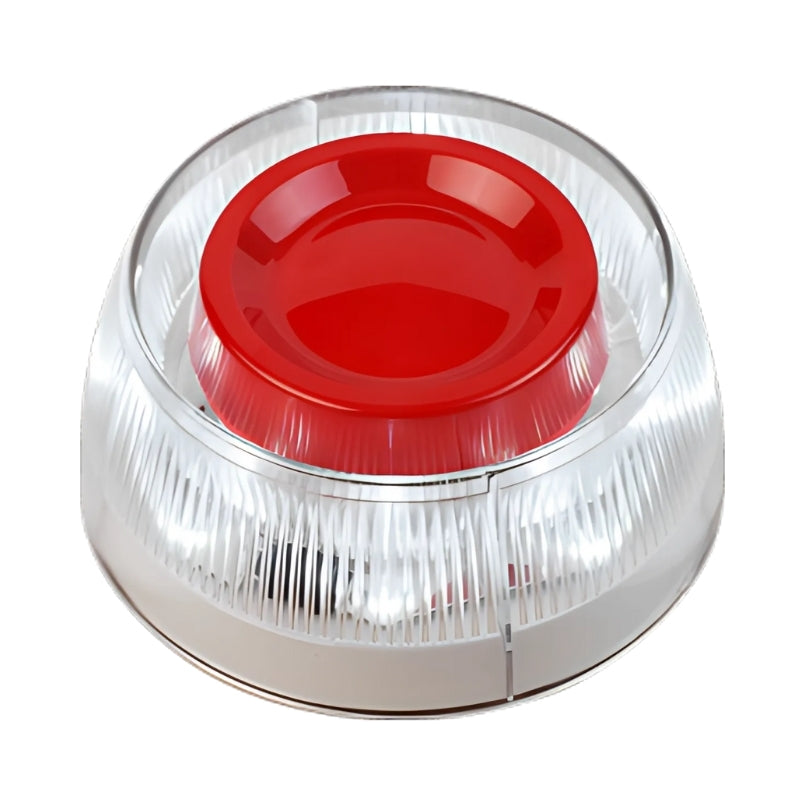

Addressable piezo siren with built-in flash. Two volume levels - LOW: 80- 88dB; HIGH: 92-98dB. EN54-3/23, EN54-17.
- 32 types of sound (selectable from the control panel)
- Piezo emitter
- Flash lamp - white
- Circular synchronization for a cleaner sound signal
- Round power supply
- Transparent housing
- En54 - 3/23 certified
* Depends on the type of sound selected. The basic sound type is 27 - a detailed description of the sound types can be found in the device installation description.
| Supply Voltage | 15 - 32VDC (Nom. 27VDC) |
| Nominal consumption (at rest) | <500μA@27VDC |
| Used wire section | 2.5mm² |
| Operating Temperature | -10°C to +50°C |
| IP protection | IP43C (with B124 base) IP65 (with WSB IP65 base) |
| Weight | 183g |
| Dimensions (without base) | 116x55mm |
| Maximum consumption (base volume type 27): | |
| < 5mA | |
| < 12mA | |
| < 16.5mA | |
| < 22mA | |
| Maximum consumption (other sound type): | |
| < 4mA | |
| < 11mA | |
| < 10mA | |
| < 16.5mA |
